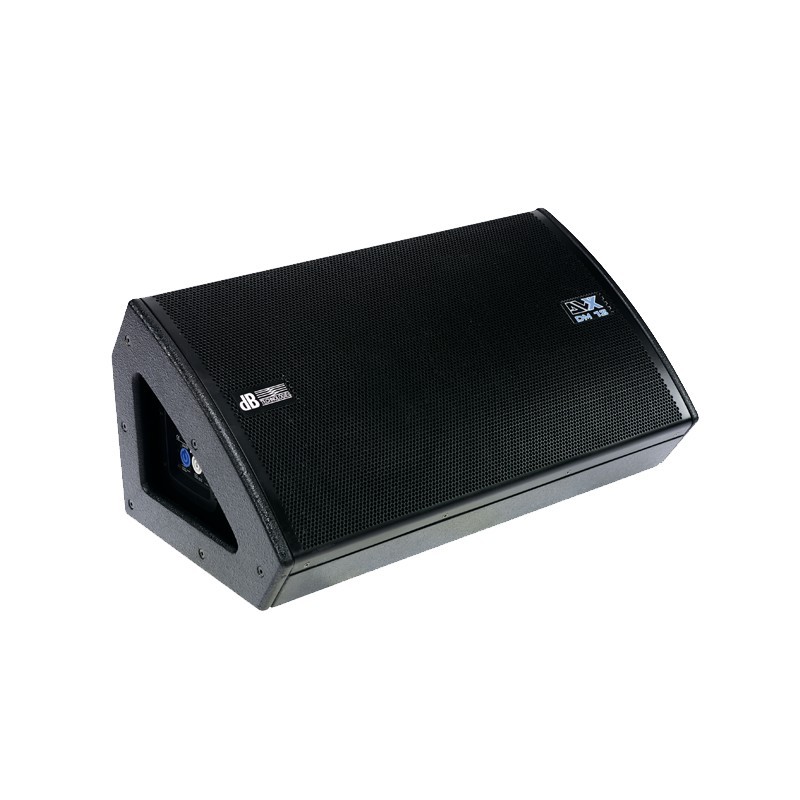

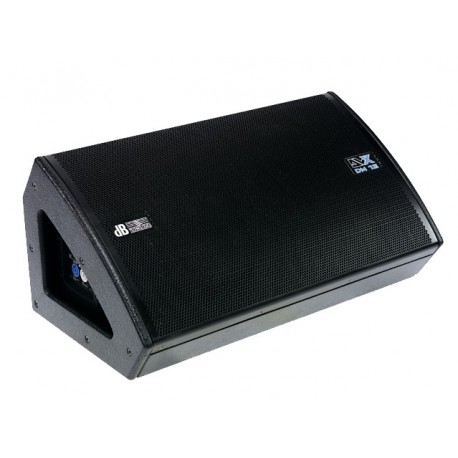

Bafle DB Technologies - DVX DM15 - 750 W RMS

• TECHNICAL DATA
• Speaker Type: 2-Way Active Stage Monitor
• ACOUSTICAL DATA
• Frequency Response [-10dB]: 50 - 20.000 Hz
• Frequency Response [+/- 3dB]: 59 - 19.000 Hz
• Max SPL: 132 dB
• HF: 1.4 "
• Type HF: Neodymium Compression Driver
• Voice Coil HF: Titanium 2.5 "
• Directivity: 60x40 °
• Horn: CD Horn Aluminium
• Rotatable Horn: YES
• LF: 15 "
• Type LF: Neodymium
• Voice Coil LF: 3.5 "
• AMPLIFIER
• Amp Technology: Digipro®
• Amp Class: Class D
• Power RMS: 750 W
• Peak Power: 1500 W
• Cooling: Convection
• PROCESSOR
• Controller: DSP 24 Bit/48 kHz
• System Presets: Flat, Monitor
• Limiter: RMS, Peak. Thermal, Multiband
• Crossover Frequency MF-HF: 1320 Hz
• Slope MF-HF: 24 dB/Octave
• INPUT
• MECHANICS
• Housing: Multiplex birch plywood
• Housing Design: Low Profile Multifunctional
• Angles Up: 35, 55 °
• Rigging Points: 6x M8
• Width: 734 mm (29.36 in)
• Height: 338 mm (13.52 in)
• Depth: 442 mm (17.68 in)
• Weight: 21 kg (46.3 lbs)
