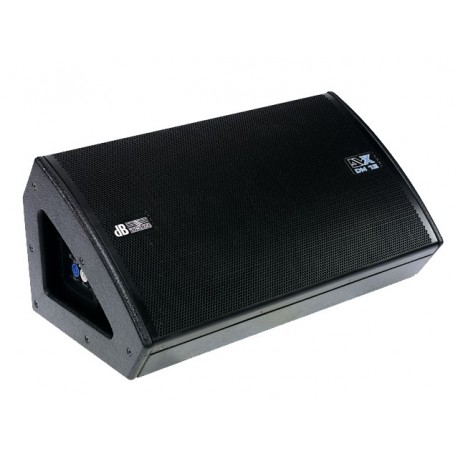

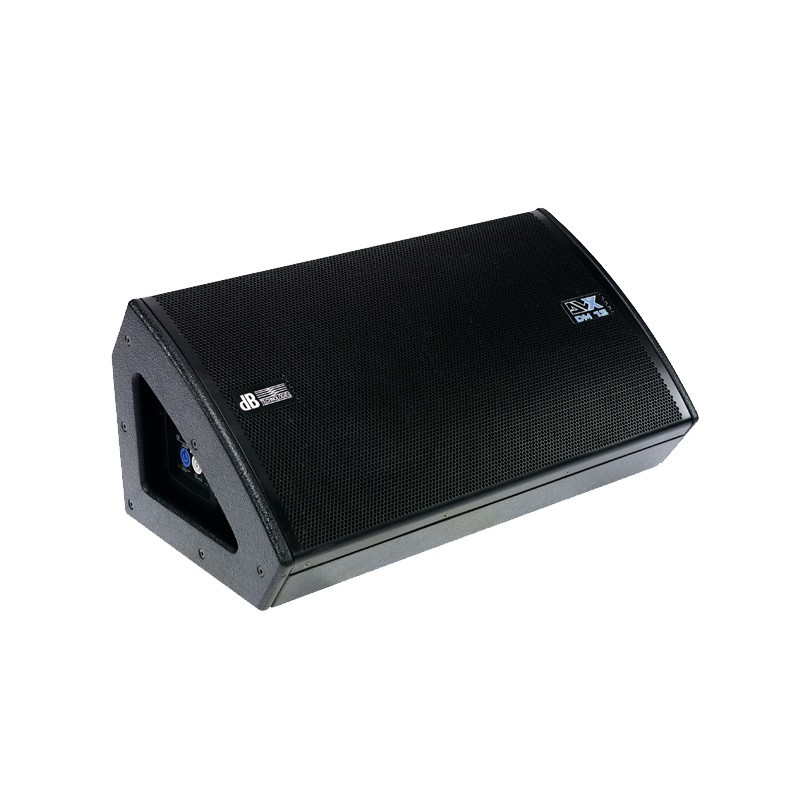

Bafle DB Technologies

• TECHNICAL DATA
• Speaker Type: 2-Way Active Stage Monitor
• ACOUSTICAL DATA
• Frequency Response [-10dB]: 55 - 20.000 Hz
• Frequency Response [+/- 3dB]: 68 - 19.000 Hz
• Max SPL: 131 dB
• HF: 1.4 "
• Type HF: Neodymium Compression Driver
• Voice Coil HF: Titanium 2.5 "
• Directivity: 40x90 °
• Horn: CD Horn Aluminium
• Rotatable Horn: YES
• LF: 12 "
• Type LF: Neodymium
• Voice Coil LF: 3 "
• AMPLIFIER
• Amp Technology: Digipro®
• Amp Class: Class D
• Power RMS: 750 W
• Peak Power: 1500 W
• Cooling: Convection
• PROCESSOR
• Controller: DSP 24 Bit/48 kHz
• System Presets: Flat, Monitor
• Limiter: RMS, Peak. Thermal, Multiband
• Crossover Frequency MF-HF: 1320 Hz
• Slope MF-HF: 24 dB/Octave
• INPUT
• MECHANICS
• Housing: Multiplex birch plywood
• Housing Design: Low Profile Multifunctional
• Angles Up: 35, 55 °
• Rigging Points: 6x M10 4x Quick-Relase Pins
• Width: 660 mm (14.8 in)
• Height: 305 mm (25 in)
• Depth: 378 mm (15.8 in)
• Weight: 17.5 kg (55.12 lbs)
