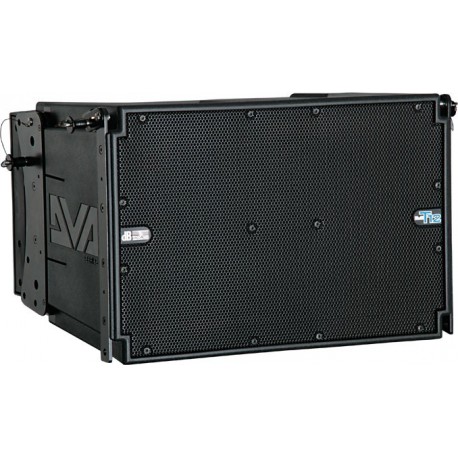

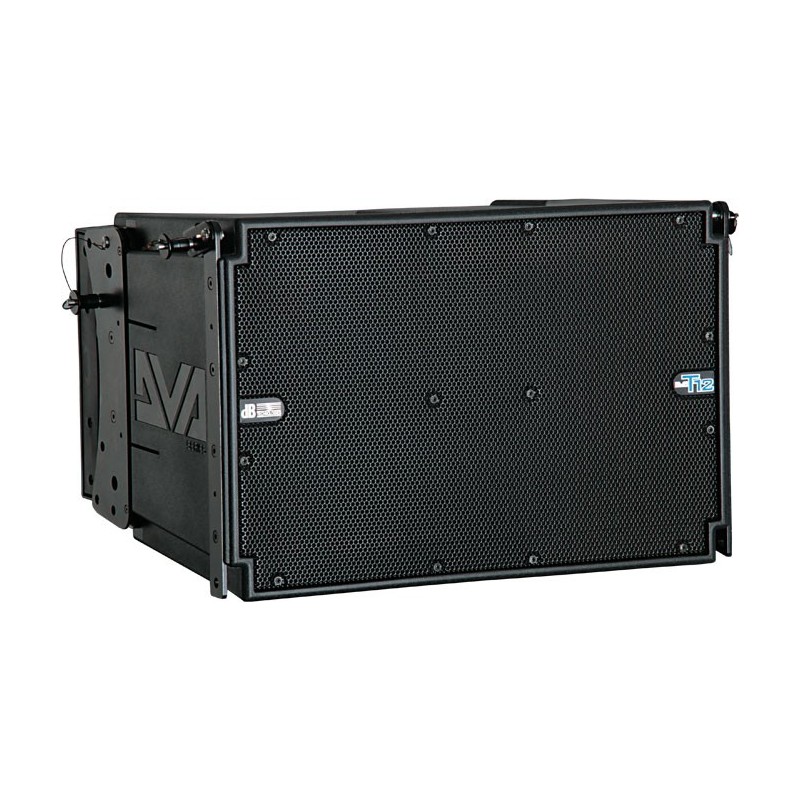

Bafle DB Technologies - DVA T12 - 1410 W RMS

• TECHNICAL DATA
• Speaker Type: 3-Way Active Line Array Module
• ACOUSTICAL DATA
• Frequency Response [+/- 3dB]: 60 - 19.000 Hz
• Max SPL: One Unit: 136 dB
• HF: 3x1 "
• Voice Coil HF: 1.4 "
• Directivity: 100x10 ° Single unit
• Horn: Integrated CD Horn
• MF: 2x 6.5 "
• Type MF: Neodymium Sealed Basket Phase Plug Horn Loaded
• Voice Coil MF: 2 "
• LF: 12 "
• Type LF: Neodymium
• Voice Coil LF: 3 "
• AMPLIFIER
• Amp Technology: Digipro® G2
• Amp Class: Class D
• HF Amp: 350 W RMS
• MF Amp: 350 W RMS
• LF Amp: 710 W RMS
• Cooling: Convection
• PROCESSOR
• Controller: DSP 56 bit
• AD/DA Converter: 24 bit/96 kHz
• System Presets: 8, HF/Low-mid correction
• Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
• Crossover Frequency MF-HF: 1800 Hz
• Slope MF-HF: 24 dB/Octave
• Crossover Frequency LF-MF: 420 Hz
• Slope LF-MF: 24 dB/Octave
• INPUT
• Signal Input: 1x XLR fem, Bal.
• Signal Output: 1x XLR male, Bal.
• Network: RDnet remote control RJ45 connector IN/OUT
• Power Socket: 1x Powercon In 1x Powercon Out
• Voltage Range: 90 - 240 V
• MECHANICS
• Housing: Polypropylen PP Aluminium reinforced
• Housing Design: Trapezoidal 10°
• Rain Cover: Included
• Rigging Points: Integrated rigging hardware
• Width: 580 mm (23.2 in)
• Height: 386 mm (15.44 in)
• Depth: 430 mm (17.2 in)
• Weight: 29,9 kg (63.93 lbs)
