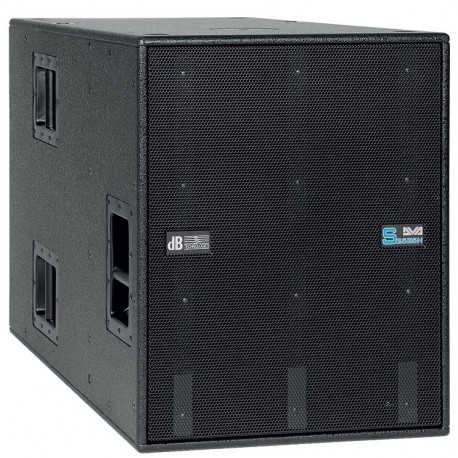

Bafle DB Technologies - DVA S2585N - 2500 W RMS

• TECHNICAL DATA
• Speaker Type: Active Cardiod-Subwoofer
• ACOUSTICAL DATA
• Frequency Response [+/- 3dB]: 35 - 120 Hz
• Max SPL: 140 dB
• Directivity: Cardiod
• LF: 18+15 "
• Voice Coil LF: 4 "
• AMPLIFIER
• Amp Technology: Digipro® G2
• Amp Class: Class D
• Power Supply: 2.5 kW SMPS
• LF Amp: 2500 W RMS
• Cooling: Convection
• PROCESSOR
• Controller: DSP 56 bit
• AD/DA Converter: 24bit/ 96 kHz
• System Presets: X-Over,Delay
• Phase: 0, 180 °
• Limiter: RMS, Peak, Thermal
• Delay Option: 0-4.5 ms internal
• Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
• LF-Xover out slope: 24 dB/Octave
• INPUT
• MECHANICS
• Housing: Multiplex birch plywood
• Housing Design: Rectangular
• Handles: 3x Per Side
• Accessory: Dolly, Dust Cover, Rain Cover
• Pole Mount: M20
• Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
• Width: 515 mm (20.6 in)
• Height: 640 mm (25.6 in)
• Depth: 1000 mm (40 in)
• Weight: 65 kg (143.3 lbs)
